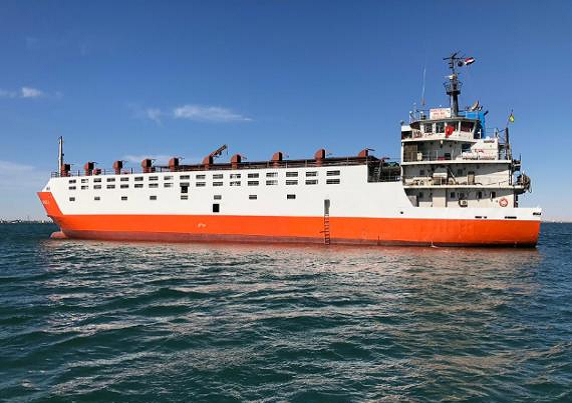

M/V BANYAS 1 7615036
BASIC PARTICULARS :
M/V BANYAS 1 7615036
| VESSEL NAME | BANYAS 1 |
| VESSEL TYPE | LIVESTOCK CARRIER |
| FLAG | TOGO |
| REGISTRTION NO | TG/REG/139-38512/149/FE |
| PORT OF REGISTRY | LOME |
| CALL SIGN | 5VEO4 |
| MMSI | 671828000 |
| IMO NUMBER | 7615036 |
| YEAR BUILT | 1977 |
| CLASS SOCIETY | COSMOS MARINE BUREAU INC. (CMB) |
| CLASS ID | TG00956L |
| BUILDER | JJ SIETAS SCHIFFSWERFT - GERMANY |
| OWNER | ALBANYASIA MARINE SHIPPING INC. |
| MANAGER | SENA SHIP MANAGEMENT S.A. |
VESSEL PARTICULARS :
SHIP PARTICULARS:
| LENGTH OVERALL (M). | 71.57 |
| LBP (M). | 65.51 |
| DEPTH MOULDED (M). | 6.80 |
| BREADTH MOULDED (M). | 12.80 |
| DRAFT (M) | 5.50 |
| DEAD WEIGHT (TONS) | 2,060.00 |
| GROSS TONNAGE (TONS) | 1,667.00 |
| NET TONNAGE (TONS) | 1,121.00 |
| LIGHT WEIGHT (TONS) | 1,778.92 |
| DISPLACEMENT (TONS) | 3,838.92 |
PROPULSION PARTICULARS :
| MAIN ENGINE | MAK 8M 452 AK 1103 KW |
| AUX. ENGINE | (THREE) MAN B&W 6L 20/27 486 KW @ 440 V |
| EMG DIESEL GENERATOR | DEUTZ F5L 413 FR 78 KW @1800 RPM 125/130 |
| SERVICE SPEED | 13 Knots |
LIVESTOCK CARRYING CAPACITIES FOR SHEEPS/GOATS :
| ITEM | FLOOR AREA (M2) | Area (m2) | Mature 40KG/+ | Average Size 30KG |
|---|---|---|---|---|
| DECK 1 | 409 | 818 | 3272 | 4090 |
| DECK 2 | 465 | 930 | 3720 | 4650 |
| DECK 3 | 511 | 1022 | 4088 | 5110 |
| DECK 4 | 541.5 | 1083 | 4332 | 5415 |
| DECK 5 | 314.5 | 314.5 | 1258 | 1573 |
| TOTAL | -- | 4,167.5 | 16,670 | 20,838 |
LIVESTOCK CARRYING CAPACITIES FOR CATTLES :
| ITEM | FLOOR AREA (M2) | Area (m2) | Mature 40KG/+ | Average Size 30KG |
|---|---|---|---|---|
| DECK 1 | 409 | 409 | 426 | 545 |
| DECK 2 | 465 | 465 | 484 | 620 |
| DECK 3 | 511 | 511 | 532 | 681 |
| DECK 4 | 541.5 | 541.5 | 564 | 564 |
| DECK 5 | 314.5 | -- | -- | -- |
| TOTAL | -- | 1,926.5 | 2,007 | 2,569 |

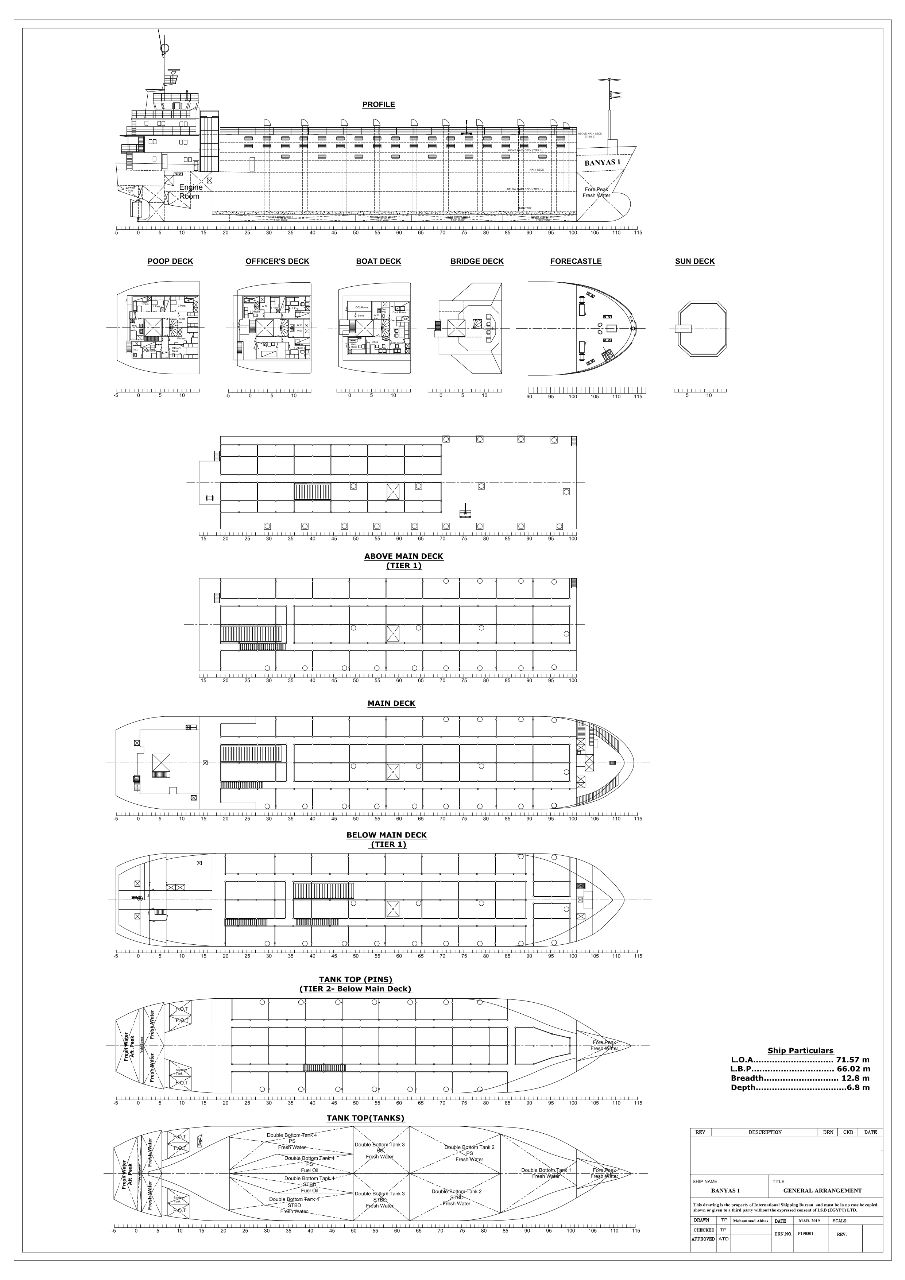

GENERAL ARRANGEMENT
